ضمان من العربي ضمان رسمي معتمد من شركة العربيProjector Information :-

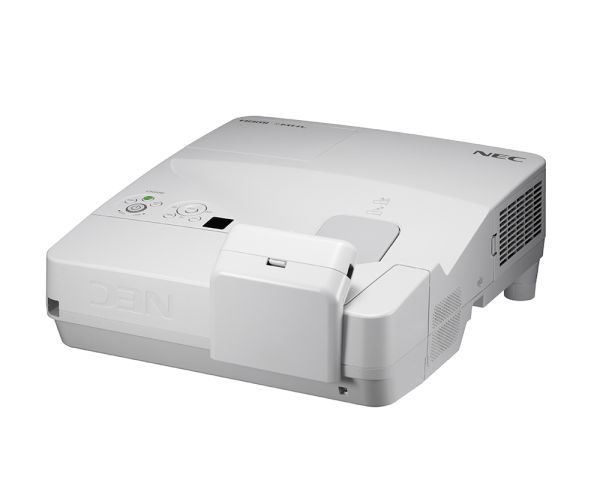

Projector Name : UM301Xi (Multi-Pen)
Projector Group : Interactive Multi-Pen Projector
Order Code : 60004206
Image :-
Projection Technology : 3LCD Technology
Native Resolution : 1024 x 768 (XGA)
Aspect Ratio : 4:3
Contrast Ratio : 6000:1
Brightness : 3000 ANSI Lumen (Approx. 75% In Normal, 60% In Eco Mode)
Lamp : 235 W High Bright / 170 W Normal / 140 W Eco Mode
Lamp Life [hrs] : 8000 Eco / 5000 Normal / 4000 High Bright Mode
Lens : F= 1.8, f= 4.78 mm
Lens Offset [%] : 75
Keystone Correction : +/- 10° Manual Horizontal / +/- 10° Manual Vertical
Projection Angle [°] : 53.1
Projection Factor : 0.36 : 1
Projection Distance [m] : 0.1 – 0.51
Screen Size (Diagonal) [cm] /[inch] : Maximum: 296.4 / 116", Minimum: 156.2 / 61.5"
Zoom : 1.4 x Digital Zoom
Focus Adjustment : Manual
Supported Resolutions : 1920 x 1200 (WUXGA), 1920 x 1080 (HDTV 1080i/60, HDTV 1080i/50),
1680 x 1050 (WSXGA+), 1600 x 1200 (UXGA), 1600 x 900 (WXGA++), 1440 x 900 (WXGA+),
1400 x 1050 (SXGA+), 1366 x 768 (WXGA),1360 x 768 (WXGA), 1280 x 1024 (SXGA), 1280 x 1024 (MAC 23"),
1280 x 960 (SXGA), 1280 x 800 (WXGA), 1280 x 768 (WXGA), 1280 x 720 (HDTV 720p), 1152 x 870 (MAC 21"),
1152 x 864 (XGA), 1024 x 768 (XGA), 832 x 624 (MAC 16"), 800 x 600 (SVGA), 720 x 576 SDTV 480p/480i,
720 x 480 SDTV 576p/576i, 640 x 480 (VGA/MAC 13")
Frequency : Horizontal : 15–100 kHz (RGB: 24 kHz– 100 kHz), Vertical: 50 – 120 Hz
Connectivity :-
RGB (analog) : Input ( 1 x Mini D-sub 15-pin, compatible to component (YPbPr) )
Output ( 1 x Mini D-sub 15 pin )
Digital : Input ( 1 x HDMI™ (Deep Color, Lip sync); 1 x HDMI™ with MHL support )
Video : Input ( 1 x RCA )
Audio : Input ( 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo )
Output ( 1 x 3.5 mm Stereo Mini Jack (variable) )
Microphone : Input ( 1 x 3.5 mm Stereo Mini Jack (Dynamic mic) )
Control : Input ( 1 x D-Sub 9 pin (RS-232) (male) )
LAN : 1 x RJ45, Optional WLAN
USB : 1 x Type B, 2 x Type A (USB 2.0 high speed)
Video Signals : NTSC, NTSC 3.58, NTSC 4.43, PAL; PAL-M, PAL-N, PAL60, SECAM
Remote Control :-
Aspect Ratio, Audio Control, Auto Adjust, AV Mute, Digital Zoom, Direct Source Select,
Freeze, Help Eco Mode, Help-function, ID set, Picture Adjust, Presentation and Mouse Control
Electrical :-
Power Supply : 100-240 V AC, 50 - 60 Hz
Power Consumption [W] : 227 (Normal) / 190 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by), 285 (High Bright)
Mechanical :-
Dimensions (Width x Height x Depth) [mm] : 378 × 112 × 428 (without lens and feet)
Weight [kg] : 5.5
Fan Noise [dB (A)] : 27 / 27 / 35 (ECO / Normal / High Bright)
Environmental Conditions :-
Operating Temperature [°C] : 5 to 40
Operating Humidity [%] : 20 to 80 non-condensing
Storage Temperature [°C] : -10 to 50
Storage Humidity [%] : 20 to 80 non-condensing
Ergonomics :-
Safety and Ergonomics : CE, Gost-R, RoHS, TüV GS
Speakers [W] : 1 x 20 (Mono)
Additional Features :-
Special Characteristics AMX Beacon, Auto Eco Mode, Auto Power ON/OFF, Carbon Savings Meter, Colour Management,
Content Transmission via Network, Crestron RoomView, DICOM Simulation, Direct Power-Off Function,High Altitude Mode,
Kensington security slot, Keypad Lock, Magnify, NaViSet Administrator 2, Off-Timer, Optional User Logo, Optional WLAN,
OSD with 29 languages, Password Security System, PJ LINK, Quick On/Off, Remote control and administration via LAN and RS232,
Security Bar, Test Pattern, USB Display, USB Viewer for JPEG, Virtual Remote for direct PC control,Wall Colour Correction
Green Features :-
Energy Efficiency 75 % AV mute function, Auto ECO Mode, ECO scheduler, Green one touch ECO and AV mute button,
Intelligent Power Management, Longer lamp life, Reduced power consumption. Only 0.4W stand-by,Software scheduling
Ecological Materials : 100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards : ErP compliant; RoHs compliant
Warranty :-
Projectors 3 years pan-European service
Light Source 6 months, max. 1000 hrs
Shipping Content :-
Shipping Contents Interactive Module incl. 2 pens (NP04Wi), IR Remote Control (RD-469E), Mini D-SUB Signal Cable,
Power Cord (3 m), Quick Setup Guide, Security Sticker, Users Manual on CD-ROM, Wall-mount kit NP04WK
Optional Accessories :-
Optional Accessories DisplayNote, Lamp (NP32LP), Manual Height Adjustable Wall Mount PJ03WHM, Mobile Motorized Wall
Mount NP02HM; PJ03MHA, Motorized Height Adjustable Wall Mount PJ03WHA, Wireless LAN module(NP05LM2/4/5)
Projector Information :-
Projector Name : UM301Xi (Multi-Pen)
Projector Group : Interactive Multi-Pen Projector
Order Code : 60004206
Image :-
Projection Technology : 3LCD Technology
Native Resolution : 1024 x 768 (XGA)
Aspect Ratio : 4:3
Contrast Ratio : 6000:1
Brightness : 3000 ANSI Lumen (Approx. 75% In Normal, 60% In Eco Mode)
Lamp : 235 W High Bright / 170 W Normal / 140 W Eco Mode
Lamp Life [hrs] : 8000 Eco / 5000 Normal / 4000 High Bright Mode
Lens : F= 1.8, f= 4.78 mm
Lens Offset [%] : 75
Keystone Correction : +/- 10° Manual Horizontal / +/- 10° Manual Vertical
Projection Angle [°] : 53.1
Projection Factor : 0.36 : 1
Projection Distance [m] : 0.1 – 0.51
Screen Size (Diagonal) [cm] /[inch] : Maximum: 296.4 / 116", Minimum: 156.2 / 61.5"
Zoom : 1.4 x Digital Zoom
Focus Adjustment : Manual
Supported Resolutions : 1920 x 1200 (WUXGA), 1920 x 1080 (HDTV 1080i/60, HDTV 1080i/50),
1680 x 1050 (WSXGA+), 1600 x 1200 (UXGA), 1600 x 900 (WXGA++), 1440 x 900 (WXGA+),
1400 x 1050 (SXGA+), 1366 x 768 (WXGA),1360 x 768 (WXGA), 1280 x 1024 (SXGA), 1280 x 1024 (MAC 23"),
1280 x 960 (SXGA), 1280 x 800 (WXGA), 1280 x 768 (WXGA), 1280 x 720 (HDTV 720p), 1152 x 870 (MAC 21"),
1152 x 864 (XGA), 1024 x 768 (XGA), 832 x 624 (MAC 16"), 800 x 600 (SVGA), 720 x 576 SDTV 480p/480i,
720 x 480 SDTV 576p/576i, 640 x 480 (VGA/MAC 13")
Frequency : Horizontal : 15–100 kHz (RGB: 24 kHz– 100 kHz), Vertical: 50 – 120 Hz
Connectivity :-
RGB (analog) : Input ( 1 x Mini D-sub 15-pin, compatible to component (YPbPr) )
Output ( 1 x Mini D-sub 15 pin )
Digital : Input ( 1 x HDMI™ (Deep Color, Lip sync); 1 x HDMI™ with MHL support )
Video : Input ( 1 x RCA )
Audio : Input ( 1 x 3.5 mm Stereo Mini Jack; 1 x RCA Stereo )
Output ( 1 x 3.5 mm Stereo Mini Jack (variable) )
Microphone : Input ( 1 x 3.5 mm Stereo Mini Jack (Dynamic mic) )
Control : Input ( 1 x D-Sub 9 pin (RS-232) (male) )
LAN : 1 x RJ45, Optional WLAN
USB : 1 x Type B, 2 x Type A (USB 2.0 high speed)
Video Signals : NTSC, NTSC 3.58, NTSC 4.43, PAL; PAL-M, PAL-N, PAL60, SECAM
Remote Control :-
Aspect Ratio, Audio Control, Auto Adjust, AV Mute, Digital Zoom, Direct Source Select,
Freeze, Help Eco Mode, Help-function, ID set, Picture Adjust, Presentation and Mouse Control
Electrical :-
Power Supply : 100-240 V AC, 50 - 60 Hz
Power Consumption [W] : 227 (Normal) / 190 (Eco) / 3 (Network Stand-by) / 0.5 (Stand-by), 285 (High Bright)
Mechanical :-
Dimensions (Width x Height x Depth) [mm] : 378 × 112 × 428 (without lens and feet)
Weight [kg] : 5.5
Fan Noise [dB (A)] : 27 / 27 / 35 (ECO / Normal / High Bright)
Environmental Conditions :-
Operating Temperature [°C] : 5 to 40
Operating Humidity [%] : 20 to 80 non-condensing
Storage Temperature [°C] : -10 to 50
Storage Humidity [%] : 20 to 80 non-condensing
Ergonomics :-
Safety and Ergonomics : CE, Gost-R, RoHS, TüV GS
Speakers [W] : 1 x 20 (Mono)
Additional Features :-
Special Characteristics AMX Beacon, Auto Eco Mode, Auto Power ON/OFF, Carbon Savings Meter, Colour Management,
Content Transmission via Network, Crestron RoomView, DICOM Simulation, Direct Power-Off Function,High Altitude Mode,
Kensington security slot, Keypad Lock, Magnify, NaViSet Administrator 2, Off-Timer, Optional User Logo, Optional WLAN,
OSD with 29 languages, Password Security System, PJ LINK, Quick On/Off, Remote control and administration via LAN and RS232,
Security Bar, Test Pattern, USB Display, USB Viewer for JPEG, Virtual Remote for direct PC control,Wall Colour Correction
Green Features :-
Energy Efficiency 75 % AV mute function, Auto ECO Mode, ECO scheduler, Green one touch ECO and AV mute button,
Intelligent Power Management, Longer lamp life, Reduced power consumption. Only 0.4W stand-by,Software scheduling
Ecological Materials : 100% recyclable packaging; Downloadable manuals; ECO packaging
Ecological Standards : ErP compliant; RoHs compliant
Warranty :-
Projectors 3 years pan-European service
Light Source 6 months, max. 1000 hrs
Shipping Content :-
Shipping Contents Interactive Module incl. 2 pens (NP04Wi), IR Remote Control (RD-469E), Mini D-SUB Signal Cable,
Power Cord (3 m), Quick Setup Guide, Security Sticker, Users Manual on CD-ROM, Wall-mount kit NP04WK
Optional Accessories :-
Optional Accessories DisplayNote, Lamp (NP32LP), Manual Height Adjustable Wall Mount PJ03WHM, Mobile Motorized Wall
Mount NP02HM; PJ03MHA, Motorized Height Adjustable Wall Mount PJ03WHA, Wireless LAN module(NP05LM2/4/5)
| الفئة الرئيسية | بروجيكتور |
|---|---|
| العلامة التجارية | إن إي سي |
| موديل المنتج | UM301Xi.. |
| الضمان | 3 سنوات ضمان |
